Uncompressed 4K/8K HDMI and DP Over Fiber Solution
OPTAV uncompressed HDMI & DisplayPort over fiber solutions transmit native raw video signal without any encoding‑decoding process.
Achieve lossless 4K/8K video, ultra‑low latency, stable point‑to‑point transmission over multi‑mode or single‑mode fiber.
Ideal for professional AV, simulation, medical imaging and machine‑vision projectsnon‑negotiable. where zero signal degradation is non‑negotiable.
Solution Overview
Traditional SFP‑based compressed IP extenders convert video into IP streams via compression, which brings latency, image artifacts and potential audio‑video sync risk.
OPTAV uncompressed 4K/8K HDMI and DP over fiber modules pass‑through native HDMI / DisplayPort electrical signal directly over optical fiber. No video compression, no IP packet processing. Only physical optical‑electrical conversion happens inside the transceiver.
Key Advantages of OPTAV Uncompressed Fiber Solution
- Lossless Zero‑compression Video
No compression artifacts, no block noise. Preserve full original pixel, color depth and HDR metadata. Perfect for high‑precision visual workflow.
- Ultra‑low End‑to‑end Latency
Only physical opto‑electrical latency at nanosecond‑microsecond level. No encoder/decoder buffer delay. Suitable for real‑time interactive operation.
- No IP‑related Failure Risk
Native signal transparent transmission, no packet loss, no jitter, no IP network complexity. Point‑to‑point plug‑and‑play without switch dependency. Avoid common IP‑extender issues like black screen, flicker, freeze.
- Native Audio‑video Synchronization
Video, embedded audio and hot‑plug signal are transmitted together. No timestamp alignment required, eliminate AV‑sync offset risk.
- High Reliability & Easy Troubleshooting
Less intermediate processing links. Faults are limited to fiber cable and optical transceiver hardware, greatly simplify on‑site debugging.
Uncompressed Solution VS Compressed SFP IP Extender
| Item | OPTAV Uncompressed HDMI / DP over Fiber | Compressed SFP IP‑based Video Extender |
|---|---|---|
| Video Processing | Raw signal pass‑through, zero‑compression | H.264 / H.265 encoding & decoding |
| Image Quality | Lossless transmission, YUV4:4:4 full chroma | Visible compression artifacts on fast‑motion scenes |
| Latency | Nanosecond‑to‑microsecond physical latency | Tens to hundreds of milliseconds encoding‑decoding latency |
| Network Requirement | Point‑to‑point direct fiber link, no switch required | Requires IP switch and network infrastructure |
| Failure Risk | Limited to fiber cable and transceiver hardware | Risk of packet loss, signal jitter and AV‑sync offset |
| Typical Max Distance | 300 m (Multi‑mode) / 20 km (Single‑mode) | Subject to SFP module and fiber specification |
| Best‑fit Scenario | Broadcast, simulation & training, medical visualization, machine vision | Digital signage, multi‑channel video surveillance |
Note: Select the uncompressed solution when image fidelity and real‑time performance are critical. Choose compressed SFP‑IP extenders if multi‑stream multiplexing is required and minor image compression is acceptable.
Typical Application Scenarios
Machine Vision & Industrial Inspection

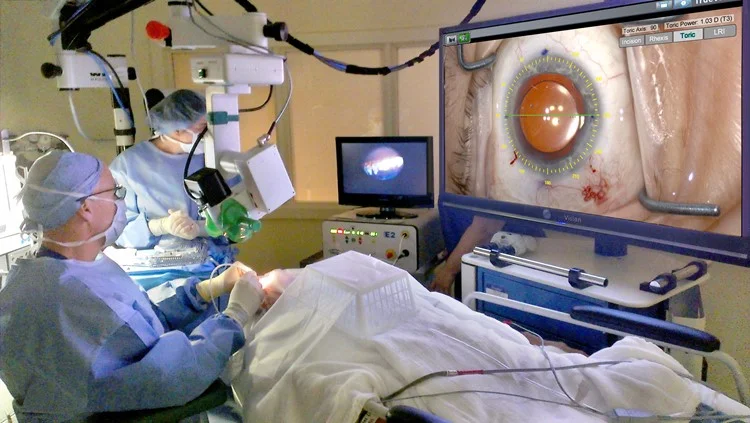

Medical Visualization

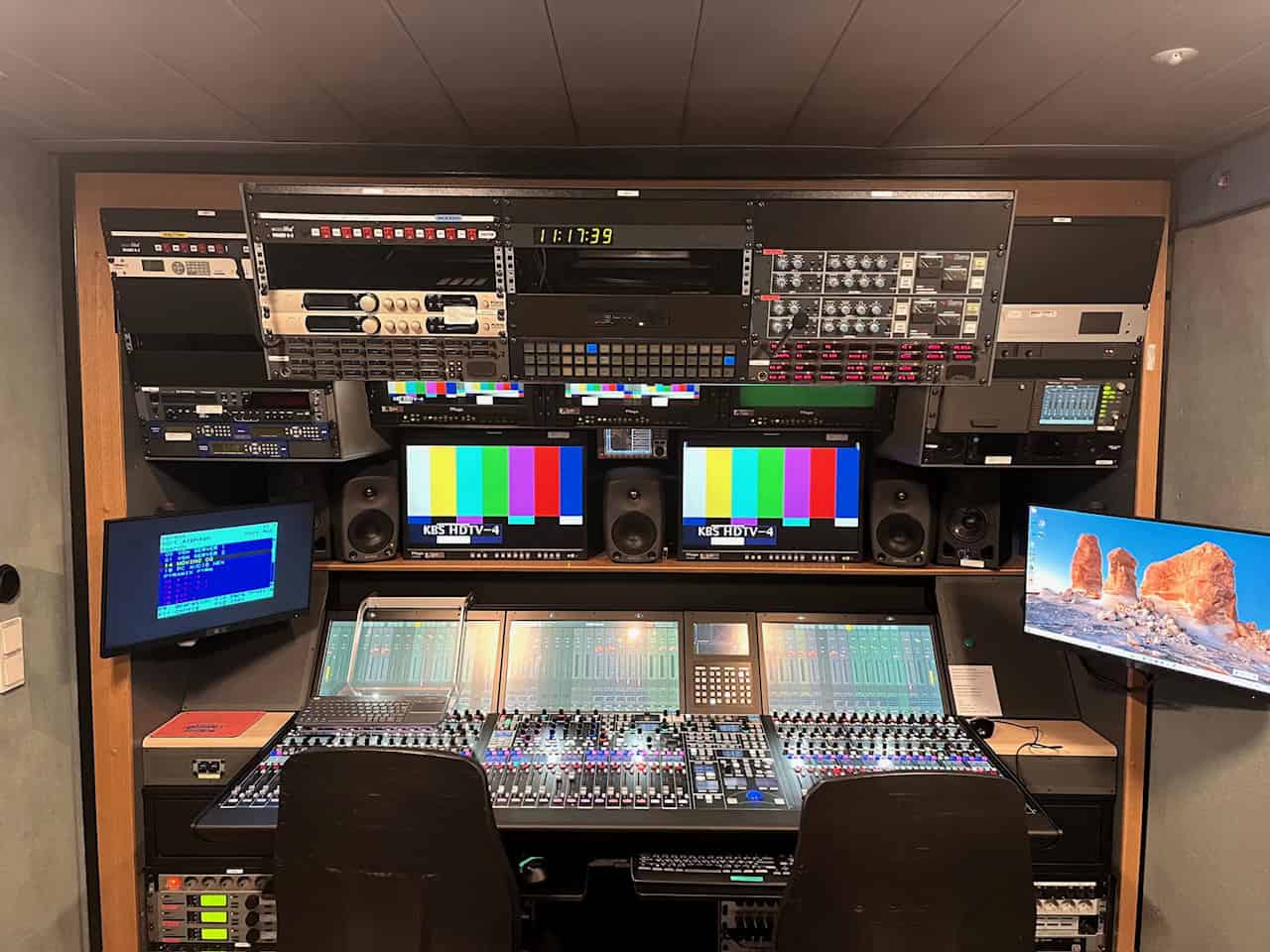

Broadcast & Live‑production

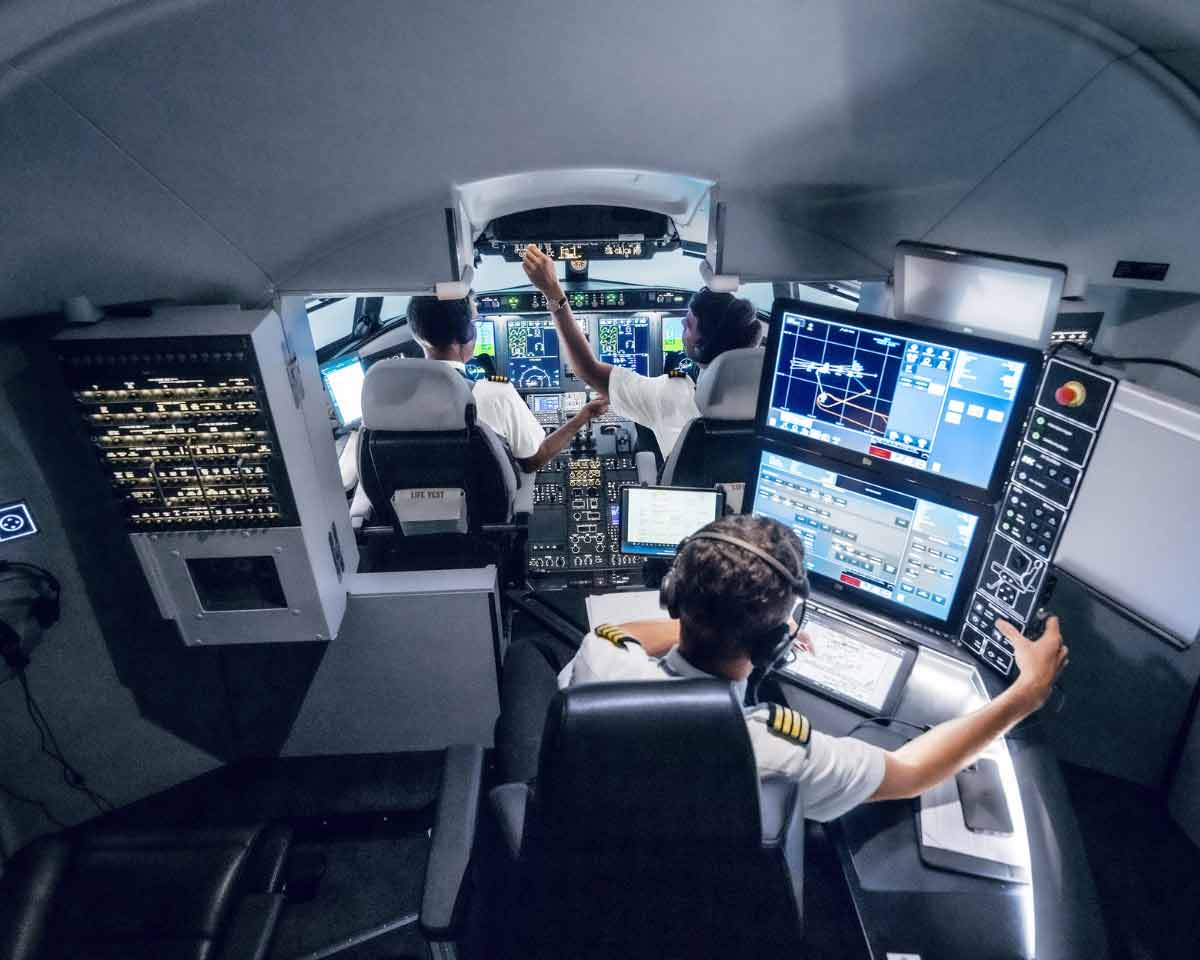

Simulation & Training System
OPTAV Uncompressed 4K/8K HDMI & DP over Fiber Products
1.Multimode
4K60 HDMI fiber extender 2XLC Multimode 300M
OV11HO-2FO-100
Fiber Mode: Multimode
Fiber Connector: 2xLC
Transmission Distance: 300M
Supported Resolution：4K@60HZ YUV4:4:4 (uncompressed)
...
HDMI 2.0 Fiber Extender 1XLC Multimode 300M
OV11HO-1FO-100
Fiber Mode: Multimode
Fiber Connector: 1xLC
Transmission Distance: 300M
Supported Resolution：4K@60HZ YUV4:4:4 (uncompressed)
...
4K HDMI fiber optic extender 2XLC Multimode 300M Optical Transceiver
OV11HO-2FO-200
Fiber Mode: Multimode
Fiber Connector: 2xLC
Transmission Distance: 300M
Supported Resolution：4K@60HZ YUV4:4:4 (uncompressed)
...
Uncompressed 4K HDMI over fiber extender 1 Port LC multimode Fiber 300M
OV11HO-1FO-200
Fiber Mode: Multimode
Fiber Connector: 1xLC
Transmission Distance: 300M
Supported Resolution：4K@60HZ YUV4:4:4 (uncompressed)
...
Mini HDMI Fiber Extender 4K Uncompressed multimode 300M
OV1FL-H20-M01
Fiber Mode: Multimode
Fiber Connector: 1xLC
Transmission Distance: 300M
Supported Resolution：4K@60HZ YUV4:4:4 (Uncompressed)
...
DP to HDMI Fiber Optic Converter 1XLC multimode 500M pigtail Type Uncompressed 4K60
OV11DH-1FO-012
Fiber Mode: Multi-mode
Fiber Connector: 1xLC
Transmission Distance: 500M
Supported Resolution：4K@60HZ 4:4:4(Uncompressed)
Signal Version：HDMI 2.0/DP 1.2...
4K HDMI Pigtail Fiber Extender Mini 1XLC multimode 300M 4K60 Uncompressed
OV11HH-1LC-PC1
Fiber Mode: Multi-mode
Fiber Connector: 1xLC
Transmission Distance: 300M over Multi-mode fiber
Supported Resolution：uncompressed 4K60HZ YUV4:4:4
Signal Versi...
Uncompressed HDMI 2.1 Fiber Extender 1XLC multimode 300M 8K60 KVM Function
OV11HH-H21-F01
Fiber Mode: Multi-mode
Fiber Connector: 1xLC
Transmission Distance: 300M
Supported Resolution：8K@60HZ YUV4:2:0 /4K@120HZ YUV4:4:4 (Uncompressed)
Signal Versio...
HDMI 2.1 Over MPO Fiber Extender Kit 8K60HZ Uncompressed multimode 300M
OV11HH-MPO-H21
Fiber Mode: Multimode
Fiber Connector: MPO(Type-A)
Transmission Distance: 300M
Supported Resolution：8K@60HZ YUV4:4:4 (Uncompressed)
...
HDMI Wallplate Fiber Extender 1XLC multimode 100M POC 4K60 Uncompressed Video
OV11HO-WPTB-001
Fiber Mode: Multimode
Fiber Connector: 1xLC
Transmission Distance: 100M
Supported Resolution：4K@60HZ YUV4:4:4
...
2.Singlemode
Uncompressed 4K HDMI 2.0 Fiber Extender 4:4:4 1LC singlemode 700M With Ethernet Port
OV11HH-1FO-SAT
Fiber Mode: Single-mode fiber
Fiber Connector: 1xLC
Transmission Distance: 700M
Supported Resolution：4K@60HZ 4:4:4 (uncompressed)
Signal Version：HDMI 2.0...
4K60 HDMI 2.0 Uncompressed Fiber Optic Extender 1LC singlemode 700M With Ethernet Port
OV11HH-1FO-S0T
Fiber Mode: Single-mode fiber
Fiber Connector: 1xLC
Transmission Distance: 700M
Supported Resolution：4K@60HZ 4:4:4 (uncompressed)
Signal Version：HDMI 2.0...
Lossless 4K HDMI 2.0 over Fiber Extender 1LC singlemode 700M with Audio
OV11HH-1FO-SA
Fiber Mode: Single-mode fiber
Fiber Connector: 1xLC
Transmission Distance: 700M
Supported Resolution：4K@60HZ 4:4:4 (uncompressed)
Signal Version：HDMI 2.0...
4K Uncompressed HDMI 2.0 Fiber Extender 1LC singlemode 700M Bidirectional RS232 IR
OV11HH-1FO-S
Fiber Mode: Single-mode fiber
Fiber Connector: 1xLC
Transmission Distance: 700M
Supported Resolution：4K@60HZ 4:4:4 (uncompressed)
Signal Version：HDMI 2.0...
DP Optical Extender 1XLC singlemode 1KM Uncompressed 8K30 4K120 With 100M Ethernet
OV11DP-1FO-14T
Fiber Mode: Single-mode fiber
Fiber Connector: 1xLC
Transmission Distance: 1KM over Single-mode fiber
Supported Resolution：8K@30HZ/4K@120HZ
Signal Version：DP...
DP over Fiber 1XLC singlemode 1KM Uncompressed 8K30 4K120 With HDMI Output
OV12DP-1FO-014
Fiber Mode: Single-mode fiber
Fiber Connector: 1xLC
Transmission Distance: 1KM over Single-mode fiber
Supported Resolution：8K@30HZ/4K@120HZ
Signal Version：DP...
DP 1.4 Fiber Extender 1XLC singlemode 1KM Uncompressed 8K30 4K120 With Bidirectional RS232 IR
OV11DP-1FO-014
Fiber Mode: Single-mode fiber
Fiber Connector: 1xLC
Transmission Distance: 1KM over Single-mode fiber
Supported Resolution：8K@30HZ/4K@120HZ
Signal Version：DP...
DP KVM Extender over Fiber 1XLC Singlemode Uncompressed 8K30 4K120 KVM Remote Control
OV11DP-1FO-KVM
Fiber Mode: Single-mode fiber
Fiber Connector: 1xLC
Transmission Distance: 1KM over Single-mode fiber
Supported Resolution：8K@60HZ/4K@120HZ
Signal Version：DP...
4K60 Uncompressed HDMI Fiber Extender 1XLC singlemode 500M
OV1FL-H20-S01
Fiber Mode: Singlemode
Fiber Connector: 1xLC
Transmission Distance: 500M
Supported Resolution：4K@60HZ YUV4:4:4 (Uncompressed)
...
Frequently Asked Questions
Q1：What is the main difference between uncompressed over fiber and SFP IP‑based extender?
A：Uncompressed transmits raw native HDMI/DP video without encoding; SFP IP solution compresses video into IP stream. Uncompressed delivers lossless image and ultra‑low latency, but consumes higher bandwidth.
Q2：Can uncompressed DP / HDMI over fiber support long‑distance transmission?
A：Multi‑mode fiber up to 300 meters; single‑mode fiber up to 20km, subject to optical power budget.
Q3：Do I need switch for uncompressed HDMI/DP over fiber?
A：No. It works on point‑to‑point fiber link directly, no network switch required.
