MPO vs LC Connector: How To Make The Right Selection For AV Fiber Extender

2023-05-102023-05-10| qiqiqiqi| 0 Comment | 11:54
Categories:

Introduction

In professional‑grade AV systems, conference‑room installations, industrial video transmission and surveillance projects, fiber extenders are widely deployed to carry HDMI, DP, SDI and Ethernet signals over long distances. Most real‑world deployments operate in a point‑to‑point one‑transmitter‑to‑one‑receiver topology for a single independent signal channel.
This article compares LC and MPO connectors from five critical dimensions: physical‑structural characteristics, total cost, field‑maintenance complexity, technical challenges when transporting high‑speed HDMI / DP video, and which industries naturally prefer MPO interfaces. It delivers practical selection guidance for AV fiber‑extender projects.

Basic Definition of LC and MPO for Fiber Extenders

LC Connector (Single / Duplex)

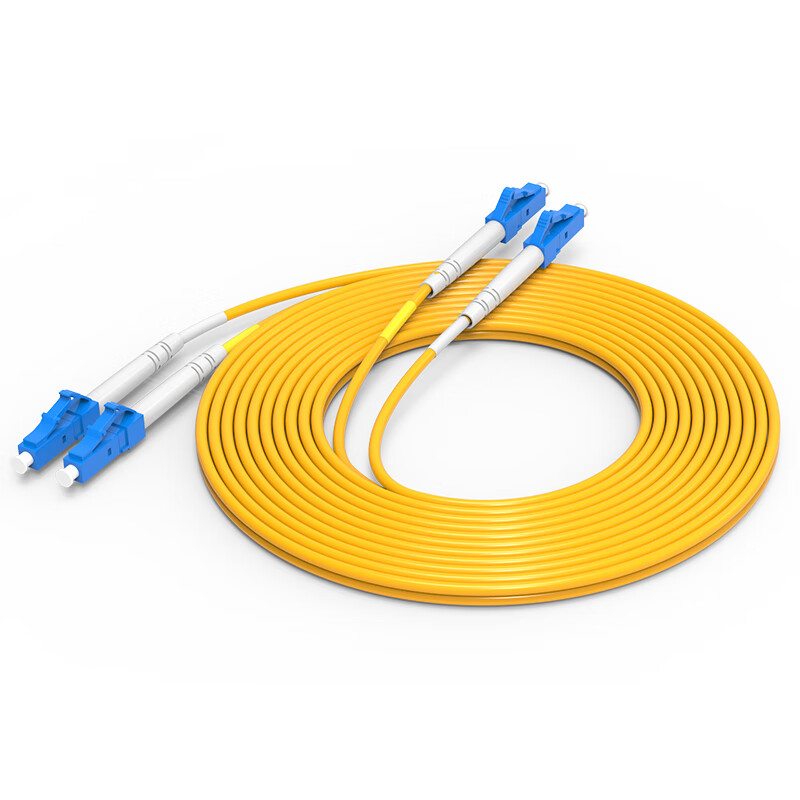

LC is a miniature single‑fiber ceramic‑ferrule connector and the de‑facto standard interface for professional AV fiber extenders. Each LC ferrule holds only one optical core.

MPO Connector (Multi‑fiber Push‑on)

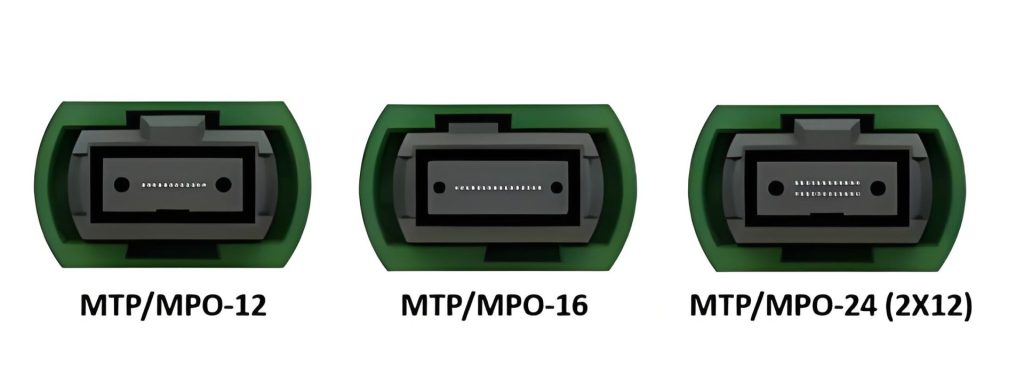

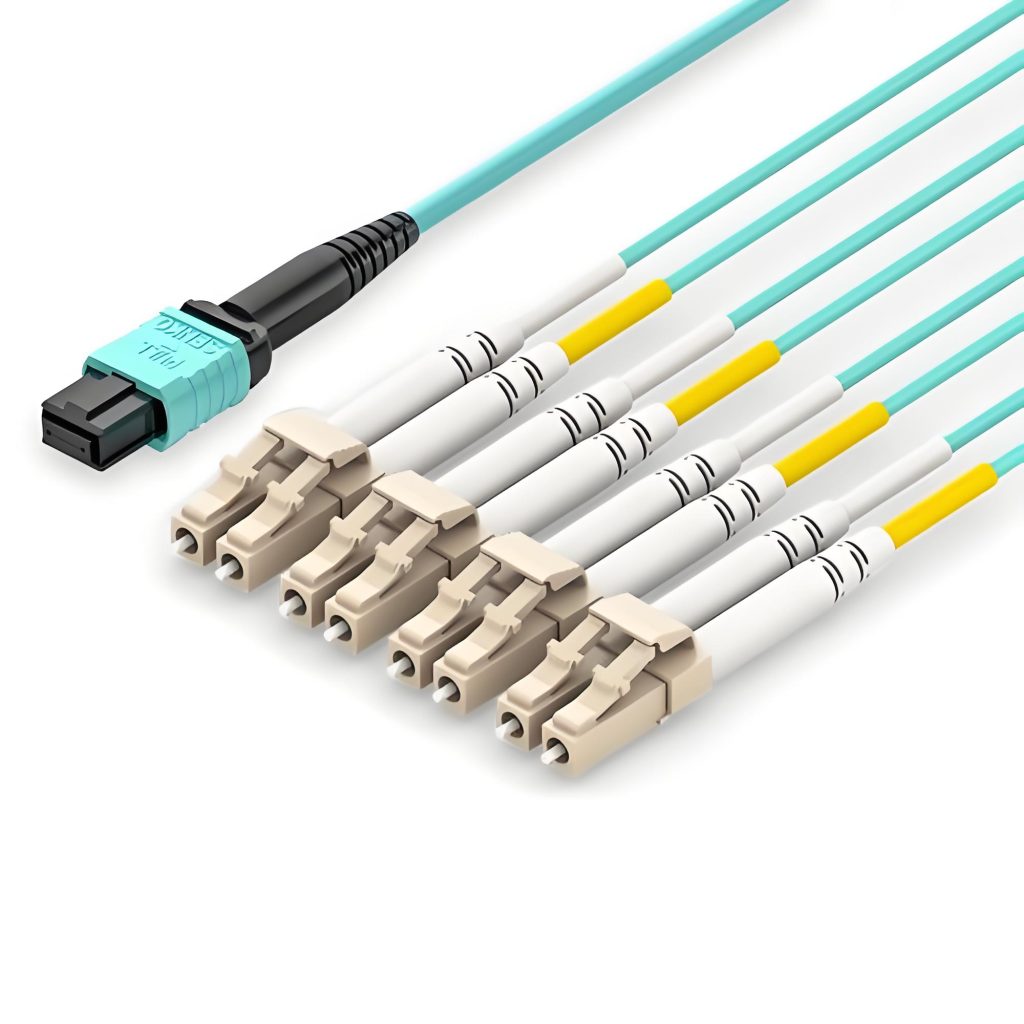

MPO is a multi‑fiber MT‑ferrule connector originally engineered for high‑density parallel optical links inside data centers. One MPO plug integrates 8/12/16/24 fiber cores for multi‑lane parallel transmission.

Core Comparison Dimensions

1. Structural & Mechanical Differences

LC‑based Fiber Extender

  • Perfect structural matching for one‑to‑one signal transmission: one signal channel occupies one independent fiber‑pair, no unused spare cores.
  • Each fiber core works independently; contamination or damage impacts only that single lane.
  • Small‑form‑factor ceramic ferrule delivers stable insertion loss; good tolerance for repeated field plug‑and‑unplug during commissioning and maintenance.

MPO‑based Fiber Extender

  • Severe structural redundancy for point‑to‑point AV links: only 6 cores carry HDMI/DP signals, while most fiber positions sit idle.
  • Large MT‑ferrule is extremely dust‑sensitive; one tiny particle contaminates all internal fiber positions simultaneously, potentially causing flickering, drop‑outs or black‑screen symptoms.
  • Strict gender (pinned / pin‑less) and polarity rules. Mis‑matching polarity directly breaks signal transmission; field‑side correction is not intuitive.

2. Cost Comparison

LC Solution

  • LC jumpers, adapters, cleaning tools and test gear are universal industry commodities with abundant supply and low unit pricing.
  • For single‑channel or small‑scale point‑to‑point AV projects, there is zero performance redundancy, delivering optimal total cost.
  • Broad interoperability with nearly all optical hardware on the market; spare‑part replacement and on‑site repair carry low financial overhead.

MPO Solution

  • MPO cables and adapters demand high‑precision MT‑ferrule moulding. Component prices are significantly higher than LC. Single‑mode MPO carries an even larger cost premium.
  • For standalone HDMI / DP extenders, you pay for multi‑fiber density you never use, creating obvious cost waste.
  • Specialized multi‑fiber inspection scopes and cleaning consumables are required for routine maintenance, adding operational expense.
  • AV‑market spare‑part availability is limited; emergency on‑site replacement is difficult.

3. Maintenance Difficulty

LC

  • Fault‑isolation is straightforward: bad signal directly maps to one physical LC port. Technicians swap jumpers quickly to verify faults.
  • All AV and IT field engineers are familiar with LC handling; low training threshold for commissioning and troubleshooting.
  • Dust‑cover hardware protects ports in harsh factory, outdoor‑enclosure and venue environments.

MPO

  • Troubleshooting is complex. Intermittent video artifacts can stem from polarity error, gender mismatch, end‑face dirt or partial ferrule offset; dedicated multi‑fiber test instruments are mandatory for root‑cause analysis.
  • Low field‑forgiveness: incorrect mating, minor shock or contamination can disable the whole link.
  • Individual broken cores cannot be replaced separately; a damaged position requires full cable assembly replacement, raising repair time and expense.

4. Technical Difficulty for HDMI / DP High‑Speed Signal Transmission

LC‑based HDMI / DP Fiber Extender

Single‑fiber LC HDMI / DP extenders adopt CWDM (Coarse Wavelength Division Multiplexing) technology. Multiple optical signals of different wavelengths are multiplexed and transmitted over one single physical fiber.
  • Multiple laser wavelengths are combined inside one fiber: several wavelengths carry high‑speed TMDS / video lanes, while other dedicated wavelengths carry bidirectional auxiliary signals such as EDID, HDCP, IR and RS‑232. All optical wavelengths share the same single‑fiber physical medium.
  • Only one physical fiber link needs to be considered for link‑budget calculation. The optical multiplexer/demultiplexer handles wavelength separation, so there is no strict requirement for time‑skew matching between different video lanes.
  • Bi‑directional auxiliary services (EDID, IR, Gigabit Ethernet) can be added into the same single‑fiber CWDM system without extra physical fibers.

MPO‑based HDMI / DP Fiber Extender

MPO‑type HDMI / DP extenders implement parallel‑optical multi‑physical‑fiber transmission, without CWDM wavelength multiplexing. Different video lanes are transmitted over separate independent physical fibers inside the MPO connector (typically 6‑fiber for complete HDMI signal).
  • Each video lane occupies a dedicated physical fiber. Every individual fiber must maintain highly matched optical power, insertion loss and signal skew. Minor inconsistency between fibers will trigger image artifacts, color error or black‑screen.
  • Tolerance stack‑up across multiple physical fibers imposes high precision requirements on MPO MT‑ferrule and transceiver performance. Tiny mechanical offset of MPO ferrule can degrade partial lanes and create intermittent faults which are hard to troubleshoot.
  • Strict polarity and lane‑sequence rules: physical fiber mapping between transmitter and receiver must be 1:1 correct. Wrong lane order directly corrupts video output.

5. Industries That Favor MPO Connectors

MPO gains its core value from multi‑fiber parallel transmission and high‑density compact interconnection. It is preferred in industries where multiple independent optical lanes must be mated via one single connector interface, not for general‑purpose point‑to‑point single‑video‑channel extension.

  • Medical equipment & medical imaging

    Medical OEMs frequently adopt ruggedized MPO assemblies for endoscopes, surgical visualization systems, and medical imaging modalities.

    Reason: Medical instruments require many parallel optical lanes to carry high‑resolution real‑time image data inside very compact device handles and cable assemblies. One MPO connector replaces a cluster of separate LC connectors, saving critical physical space inside probe / hand‑piece housings. Quick push‑pull mating simplifies equipment assembly and sterile cable replacement.

Important note: This is device‑internal or handset‑cable interconnection; it is not the same application scenario as standalone field‑deployed HDMI/DP fiber extenders.

  • Broadcast & live‑event Pro‑AV

    Outside broadcast trucks, OB‑vans, large‑scale LED wall control systems, multi‑camera live production setups widely deploy MPO trunk cabling.

    Reason: Live events need dozens of video / return / control optical links. One MPO trunk carries many fibers, reducing cable clutter inside cramped OB‑van racks. Field technicians connect / disconnect dozens of optical paths with one single plug‑in, cutting on‑site setup time drastically.

  • Military & aerospace on‑board optoelectronics

    Rugged‑spec MPO variants are used for airborne, ship‑board and ground command‑and‑control platforms.

    Reason: Severe space‑weight constraints on aircraft and vehicles. A single MPO consolidates multi‑lane optical links, reduces harness bulk. Ruggedized MPO hardware withstands heavy vibration, shock and wide temperature fluctuations.

  • Machine vision & industrial inspection equipment

    High‑end multi‑camera industrial vision systems, semiconductor inspection machines use MPO fiber assemblies.

    Reason: Multiple cameras output parallel high‑speed image streams simultaneously. MPO delivers multi‑fiber parallel connectivity within limited device panel space; fiber is immune to strong electromagnetic interference from motors and high‑voltage equipment on factory floors.

  • AI / Hyperscale data centers

    This is the most well‑known MPO application. 400G / 800G /1.6T parallel optical transceivers rely heavily on MPO interfaces.

    Reason: Massive parallel lanes for GPU‑to‑GPU traffic; MPO maximizes rack port density, lowers cabling complexity for leaf‑spine network architectures.

Key takeaway for AV‑extender selection:

All above‑listed industries adopt MPO to solve multi‑lane parallel‑connect requirements. For ordinary one‑to‑one HDMI / DP extenders that only need 6 logical video channels, MPO’s multi‑fiber advantages cannot be leveraged, while bringing higher engineering risk of skew, polarity‑mismatch and higher cost.
