HDMI 2.1 Over MPO Fiber Extender Kit 8K60HZ Uncompressed multimode 300M

OPTAV OV11HH-MPO-H21 HDMI 2.1 Over MPO Fiber Extender delivers lossless 8K UHD video over 8-core Type A MPO multimode fiber trunks. Meanwhile, this ultra-mini detachable pigtail transceiver adopts 850nm VCSEL laser to unlock full uncompressed 48Gbps HDMI 2.1 bandwidth. In turn, it supports native 8K@60Hz and smooth 4K@120Hz high refresh video with full EARC, HDR and HDCP 2.3 protocol compatibility. Besides, standardized MPO multi-fiber ports streamline large-scale rack trunk wiring and pre-terminated fiber deployment. Therefore, this HDMI 2.1 Over MPO Fiber Extender fits film post-production studios, large exhibition walls and multi-auditorium projection AV systems perfectly. Furthermore, it reaches up to 600 meters stable lossless transmission to resolve long-distance high-bandwidth AV layout pain points.

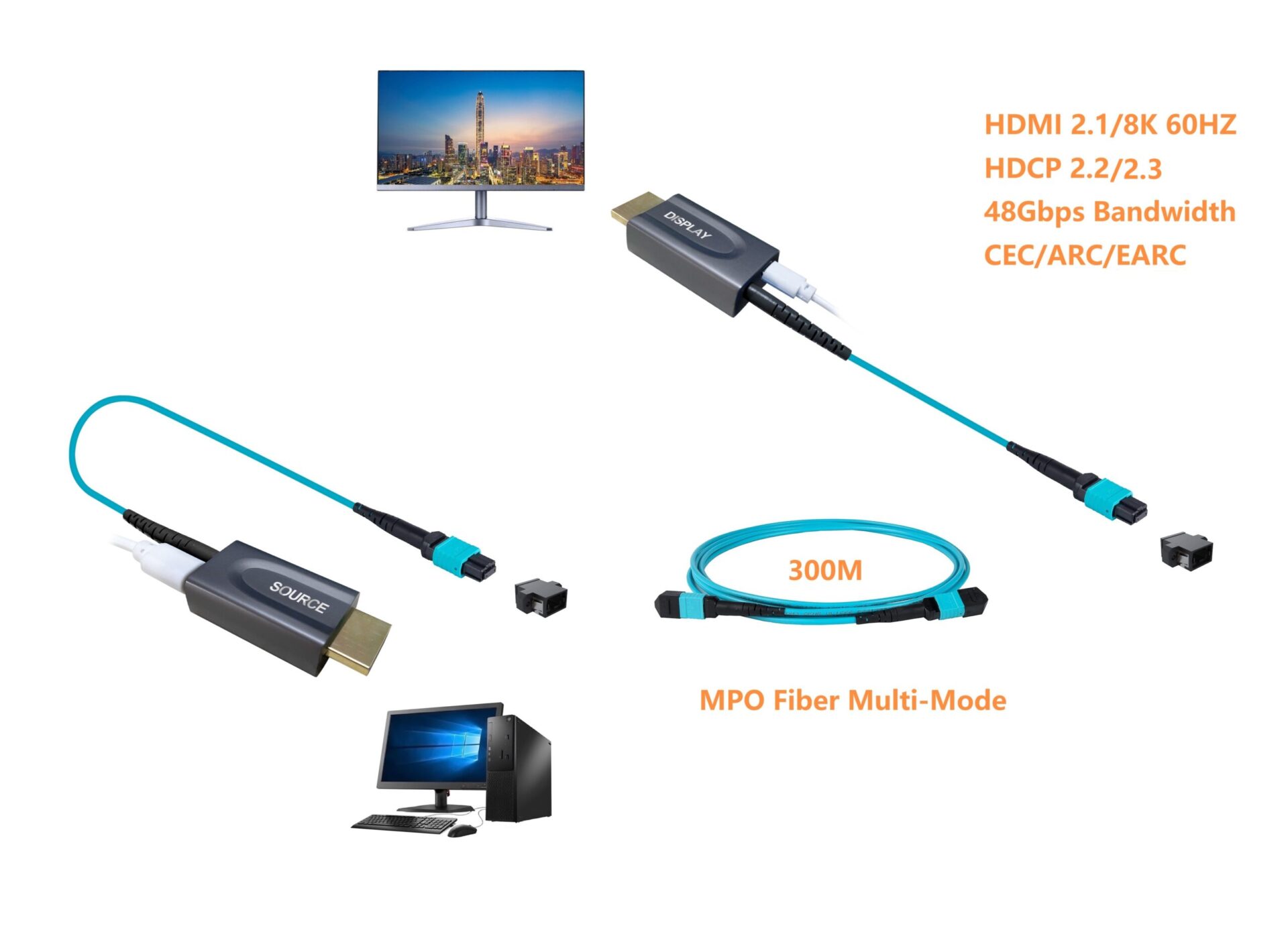

First of all, this HDMI 2.1 Over MPO Fiber Extender equips industry-standard 8-core Type A MPO fiber connectors. Specifically, OM3 multimode fiber supports steady 300-meter signal extension for medium-range venue layouts. Next, OM4 multimode fiber lifts the maximum reliable transmission distance to 600 meters for cross-floor and cross-building projects. To be precise, integrated MPO multi-strand fiber design greatly reduces cabinet cable quantity and wiring clutter. On top of that, matched MPO couplers come included to simplify on-site fiber splicing and system expansion. As a result, AV integration teams finish multi-channel trunk fiber routing in far less working time. Importantly, the MPO interface matches mainstream pre-terminated trunk fiber used in commercial AV engineering. For this reason, it cuts overall construction labor and cabling material costs drastically.

When it comes to high-bandwidth video transmission, this HDMI 2.1 Over MPO Fiber Extender fully complies with HDMI 2.1 and HDCP 2.3 standards. Correspondingly, it outputs true 12Gbps per channel to reach a total uncompressed 48Gbps video bandwidth. Even better, it renders pristine 8K@60Hz YUV4:4:4 and lag-free 4K@120Hz high-frame-rate video streams. Meanwhile, complete HDR metadata transmits fully intact to restore original color grading and brightness details. In effect, long MPO fiber trunk runs never create frame lag, color shift or compression artifacts on remote displays. In turn, video editors and venue audiences enjoy identical high-fidelity ultra-high-definition visual effects far away from source equipment.

In terms of multi-signal integrated transmission, this HDMI 2.1 Over MPO Fiber Extender carries all core auxiliary HDMI signals through one MPO fiber trunk. Correspondingly, it supports transparent DDC, HPD and EDID bypass for automatic display resolution identification and matching. Even better, built-in CEC control and enhanced EARC return audio deliver one-touch device control and lossless surround sound. Meanwhile, all mainstream HDR formats transmit synchronously without extra audio or signal converters. In effect, a single MPO fiber cable completes video, control and high-fidelity audio transmission at the same time. Thereby, field installers eliminate separate control cable laying during venue construction and renovation.

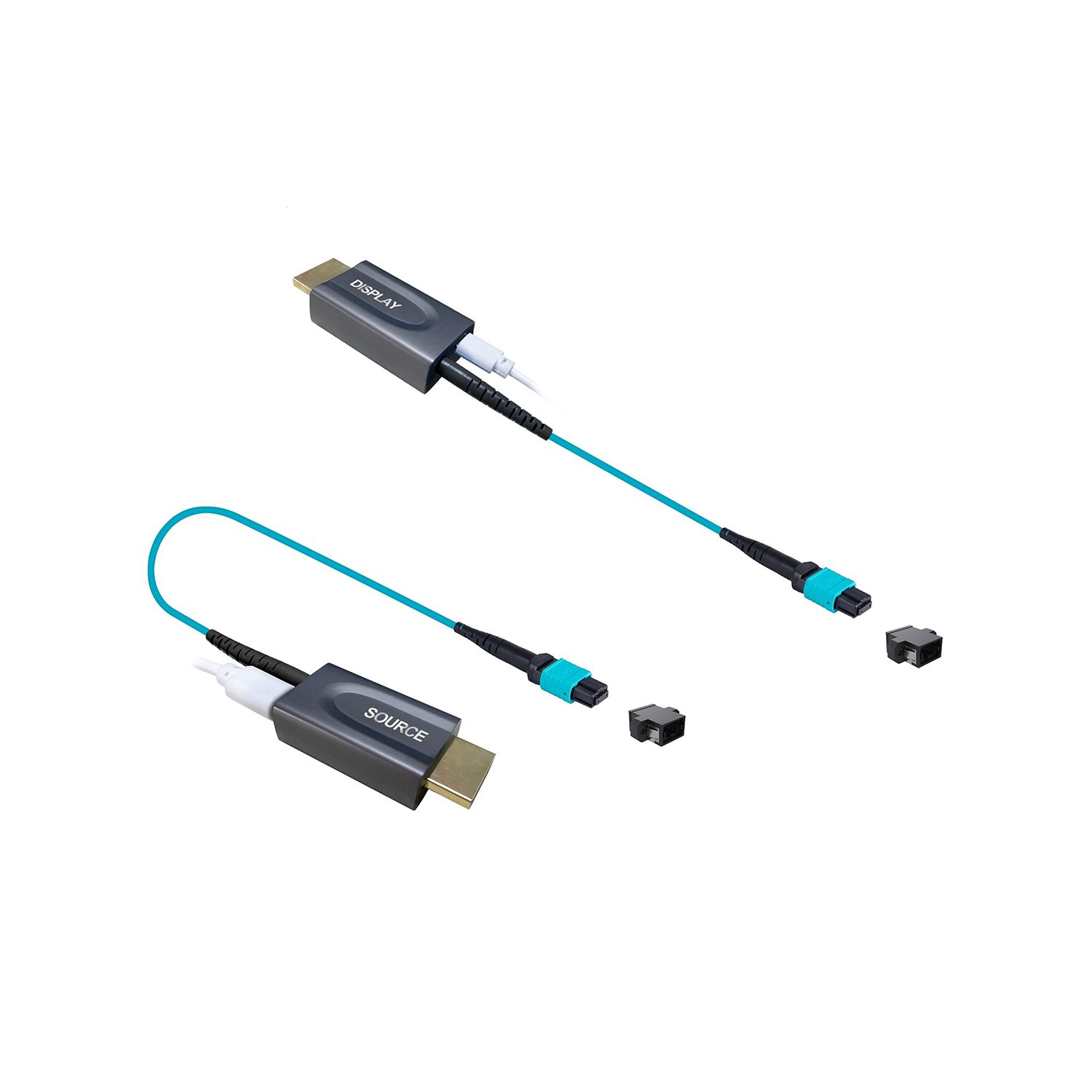

In terms of structural layout design, both transmitter and receiver adopt ultra-compact modules sized 21×34×11mm with 60CM fixed pigtails. Moreover, each unit weighs only 33 grams to support hidden routing behind screens and narrow rack gaps. For starters, the whole transceiver set runs on micro USB power with merely 0.34W typical power consumption. Equally, low power output reduces internal heat generation to support 24/7 continuous studio operation. Additionally, the split detachable structure simplifies fiber maintenance and single module replacement without full system disassembly. Thereby, technical staff complete equipment troubleshooting and replacement within minutes.

Last but not least, optical fiber transmission delivers ultra-low EMI performance and removes the need for bulky shielded copper cables. In particular, this HDMI 2.1 Over MPO Fiber Extender operates reliably under 0°C to 70°C indoor working temperature. In practice, the compact module shell resists minor impact during transportation and on-site installation. It also adapts to standard indoor humidity without condensation damage to internal optical chips. Consequently, system operators skip extra electromagnetic shielding and cooling accessories for permanent exhibition and broadcast equipment rooms.

---

---
