Description

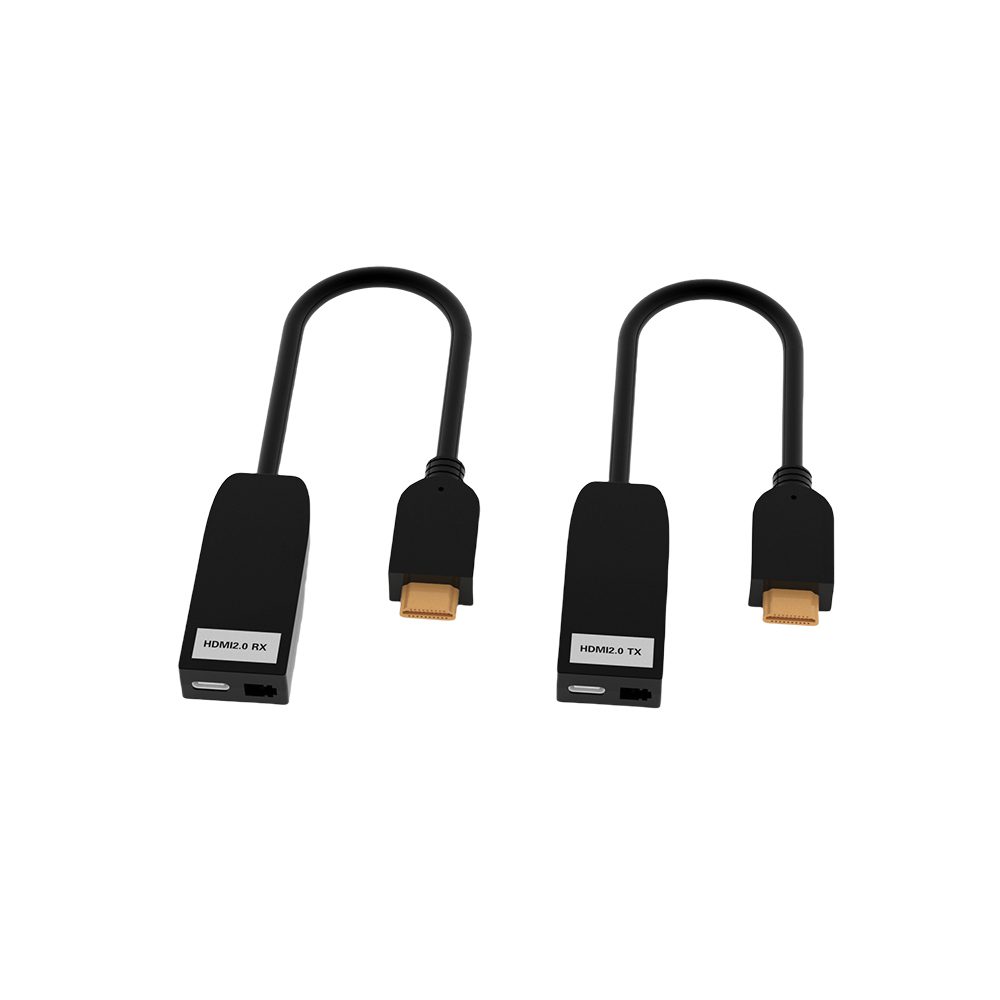

OPTAV 4K HDMI Pigtail Fiber Extender acts as a mini integrated single multimode fiber AV transmission kit, which is specially engineered for lossless long-distance ultra-high-definition signal extension. To start with, this pigtail optical extender fully complies with HDMI 2.0 18Gbps full bandwidth standard, so it can stably deliver uncompressed 4K@60Hz YUV 4:4:4 video and offer full compatibility with HDCP 2.2/1.4 copyright protection protocols. Moreover, it comes with integrated CWDM VCSEL laser and single LC multimode fiber interface, which supports a maximum transmission distance of 300M when paired with standard OM3 850nm fiber. Meanwhile, it adopts convenient USB Type-C power supply alongside ultra-low power consumption and low EMI structural design; therefore, this 4K HDMI Pigtail Fiber Extender supports tidy wiring and consistent video output within narrow installation spaces for all kinds of commercial and industrial AV deployment projects.
Core Advantages of 4K HDMI Pigtail Fiber Extender
1. Uncompressed HDMI2.0 4K@60Hz Video & Complete Aux Signal Support
First of all, this 4K HDMI Pigtail Fiber Extender leverages full 18Gbps HDMI 2.0 bandwidth to transmit uncompressed 4Kx2K@60Hz YUV 4:4:4 images without any picture quality loss. In addition, it perfectly supports HDCP 2.2 and HDCP 1.4 to ensure normal playback of encrypted video content. Beyond basic video signals, it also synchronously transmits EDID, DDC, CEC, ARC and HPD auxiliary signals at the same time; as a result, it can automatically identify display parameters and effectively prevent common faults such as resolution mismatch and blank screens during long-distance signal extension.
2. Single LC OM3 Multimode Fiber, Max 300M Stable Transmission
For optical transmission performance, this device is equipped with integrated CWDM VCSEL optical source and built-in single LC pigtail port, which perfectly matches mainstream 850nm OM3 multimode fiber. Correspondingly, it realizes steady 300-meter indoor signal transmission without image lag, screen flicker or snowflake noise. What’s more, the built-in CWDM multi-wavelength filter optimizes optical signal stability and lowers light attenuation, thus maintaining consistent and clear video output over the full transmission range.
3. USB Type-C Power Supply, Low Power & Low EMI Performance
In terms of power configuration, both transmitter and receiver only consume merely 1.4W, while the whole system is powered by a 5V/2A adapter through a USB Type-C cable. On top of that, the low EMI structural design thoroughly isolates electromagnetic interference generated by power cabinets and surrounding electrical equipment. In this way, it can output pure and distortion-free video signals even in complex electronic environments with dense electrical devices.
4. Ultra-Compact Detachable Mini Body, Easy Installation
When it comes to structural design, the transmitter and receiver share identical tiny dimensions of 62x24x11mm and each weighs only 42g with a sleek black casing. Besides, the detachable split structure greatly simplifies on-site cabling work. More importantly, its miniature size allows hidden installation inside cabinets, wall conduits and narrow equipment gaps without occupying extra layout space.
5. Wide Operating Temperature & Humidity Adaptability
Furthermore, this fiber extender boasts outstanding environmental adaptability. It supports a wide operating temperature range from -10°C to 60°C, and the storage temperature spans from -40°C to 85°C. Meanwhile, it can run stably under 5%–95% relative humidity without condensation, which makes it competent for long-term 24/7 non-stop continuous operation in conference rooms, exhibition halls and industrial control rooms.
Features
- Support 18Gbps video bandwidth.
- Video resolution up to 3840*2160 50/60HZ(YUV 4:4:4).
- Compliant with HDCP 2.2/1.X.
- HDR10，HDR10+，Dolby vision pass through.
- Support LPCM 7.1CH, Dolby 5.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master, DTS：X Audio.
- Support EDID pass-through.
- Transmission distance up to 300 meters over OM3 Multi-mode fiber.
- Support DDC/CEC/ARC/HPD.
- Compact size and detachable structure, easy and flexible for installation.
- Low EMI
- Latency: <5ms
Specification
| Transmitter | Receiver | |
| Compliance | HDMI 2.0 | |
| HDCP | HDCP 2.2/1.4 | |
| Video Bandwidth | 18Gbps | |
| Distance | Multi-mode fiber: 300M | |
| Supporting Resolution | 4Kx2K@60HZ(4:4:4 8bit) | |
| Connector/Fiber | HDMI-A 19 Pin (male)/ LC | LC/HDMI-A 19 Pin (male) |
| CWDM filter | Integrated 1270nm/1290nm/1310nm
/1330nm/1490nm/1550nm filter |
|
| Power Supply | 5V/2A on RX end | – |
| Power Consumption | 1.4W1 | 1.4W |
| Color | Black | Black |
| Dimension(LxWxH) | Pigtail: 190MM | |
| Model: 62x24x11MM | Model: 62x24x11MM | |
| Package: 230x155x30MM | ||
| Weight | Model: 42 g | Model: 42 g |
| Package：230 g | ||
| Environment | Operating Temperature Range: -10°C~60°C
Storage Temperature Range: -40°C~85°C |
|
| Relative Humidity | 20-90% RH (no condensation) | |
Main Application Scenarios
- Long-distance HDMI signal extension for multi-floor enterprise conference rooms
- UHD video transmission for digital signage in exhibition halls and museums
- Signal layout for small broadcast studios and live monitoring rooms
- Hidden wiring deployment inside industrial control rooms and equipment cabinets
- Lossless video signal extension for display walls in high-end retail stores
Connection Diagram
